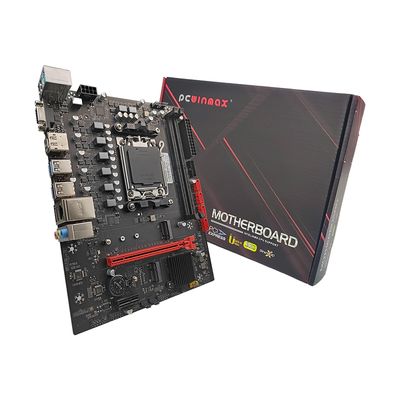

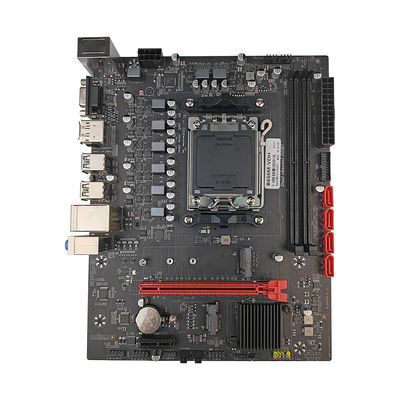

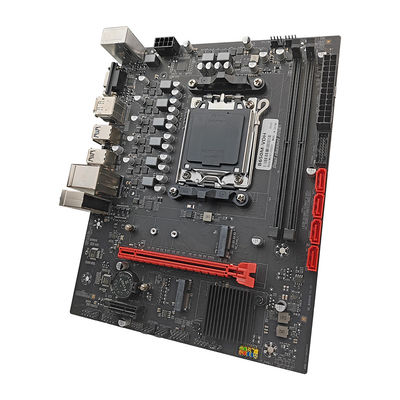

PCWINMAX B560-Pro DDR4 LGA1200 Desktop Micro ATX Motherboard Support 11th 10th Gen
| Lugar de origem | China |
|---|---|
| Marca | PCWINMAX |
| Certificação | CE FCC |
| Número do modelo | B560 |
| Quantidade de ordem mínima | 2 |
| Preço | 29.99~69.99$ |
| Tempo de entrega | 3~7 dias do trabalho |
| Termos de pagamento | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Habilidade da fonte | 100 partes 5days |
Contacte-me para amostras grátis e vales.
Whatsapp:0086 18588475571
bate-papo: 0086 18588475571
Skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Portas | SATA, PCI Express X16 | Aplicação | Área de trabalho/casa/estação de trabalho |
|---|---|---|---|
| Fabricante de chipset | Intel | Tipo de soquete | LGA1200 |
| Fator de forma | Micro-ATX | Tipo de memória | Ddr4 |
| Capacidade máxima de RAM | 64 GB | tipo de placa gráfica | Suporte de CPU de necessidade integrada |
Descrição de produto
PCWINMAX B560-Pro DDR4 LGA1200 Desktop Micro ATX Motherboard Support 11th 10th Gen
Description:
The B560 motherboard is designed for Intel 10th and 11th Gen LGA1200 processors, offering high performance and exceptional stability for gaming, workstations, and everyday computing. With support for DDR4 memory, PCIe 4.0, and M.2 storage, the B560 provides fast data transfer speeds and responsive performance for demanding applications. Its multiple display and connectivity options make it perfect for versatile desktop builds, offering a balanced solution for users who need efficiency and reliability.
Features:
1.Processor Compatibility: Supports Intel 10th and 11th Gen LGA1200 processors
2.Memory: Dual-channel DDR4 support up to 3200MHz for efficient multitasking
3.PCIe 4.0: Next-gen PCIe 4.0 slot for faster GPU and storage performance
4.Storage: M.2 NVMe SSD and SATA III ports for versatile storage options
5.Graphics Outputs: HD, DisplayPort, and VGA
6.Networking: Gigabit Ethernet for stable internet connectivity
7.USB Ports:** USB 3.2 Gen1 and Gen2 for fast peripheral connectivity
8.Expansion:** Multiple PCIe slots for GPU and additional devices
Parameter:
| CPU |
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors,
Pentium® Gold and Celeron® Processors
|
| Chipset | B560 Chipset |
| Memory |
2 x DDR4 memory slots, support up to 64GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
|
| Graphics |
1 x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1 x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
* Available only on processors featuring integrated graphics.
** Graphics specifications may vary depending on the CPU installed.
|
| Audio |
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
|
| LAN |
1 x Reatek 8111H 1000M/bps LAN controller
|
| Expansion Slots |
1 x PCIe x16 slot (From CPU)
- Support up to PCIe 4.0 for 11th Gen Intel® CPU
- Support up to PCIe 3.0 for 10th Gen Intel® CPU
1 x PCIe 3.0 x1 slot (From PCH)
1 x M.2 slot (NVme PCIE GEN3X4)
|

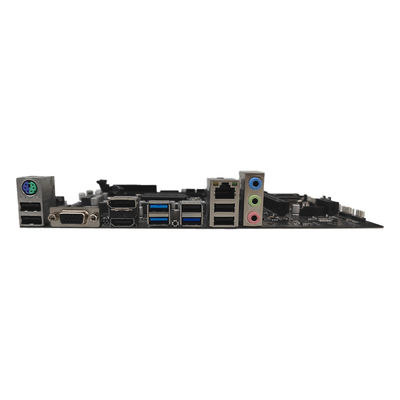

| I/O Connectors |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
3 x SATA 6Gb/s connectors
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 3-pin system fan connector
1 x Front panel audio connector
2 x System panel connectors
1 x Serial port connector
1 x Clear CMOS jumper
|
| Accessories | 1x motherboard;1x SATA Cable;1x Mainboard Driver;1x baffle;1x User Manual |
Quality Assurance:
To ensure optimal performance, all products undergo rigorous testing before shipment. This product is thoroughly tested to guarantee its reliability, stability, and compatibility. Rest assured that you are receiving a top-quality product that meets industry standards.
Our advantages:
Superior Quality and Customization
As an original manufacturer with over 20 years of industry experience, we provide premium quality products that can be fully customized to your exact specifications.
Competitive Pricing
By working directly with the manufacturer, you get the most favorable pricing on unique, tailored solutions without any middleman markups.
Fast Turnaround Time
We pride ourselves on our ability to deliver finished products within 3-7 working days to meet your rapid deployment needs.
Global Reach
With happy customers from over 200 countries, we have the proven capability to reliably ship anywhere in the world.
Trust Our Experience and Dedication
With two decades of focus in this market, we have the proven track record required to expertly guarantee the purchase well.
FAQ
1.Do your products come with a warranty?
Yes, all our products are backed by a comprehensive warranty and professional after-sales support service. Contact us for any issues or questions.
2.How do you ensure quality?
We have rigorous quality control including pre-production samples, final inspections, and testing before any product ships to customers. This guarantees you receive electronics that work flawlessly.
3.What products are available?
We offer a wide range of computer components including graphics cards, motherboards, RAM, SSDs, HDDs, CPUs, and more. Ask our sales team about our full catalog.
4.What additional services are offered?
Samples - Test out products before purchase
Daily price lists - Stay updated on the latest pricing
Technical support - Our experts are here to help
