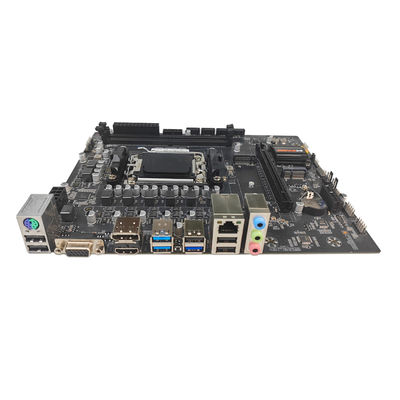

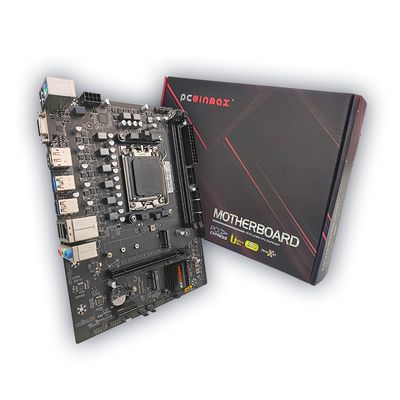

PCWINMAX B560 MATX Gaming Motherboard LGA1200 Socket B560 Chipset Supports 11th and 10th Gen Intel Processors
| Lugar de origem | CHINA |
|---|---|
| Marca | PCWINMAX |
| Certificação | CE FCC |
| Número do modelo | B560 |
| Quantidade de ordem mínima | 2 |
| Preço | 29.99~69.99$ |
| Tempo de entrega | 3~7 dias do trabalho |
| Termos de pagamento | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Habilidade da fonte | 100 partes 5days |
Contacte-me para amostras grátis e vales.
Whatsapp:0086 18588475571
bate-papo: 0086 18588475571
Skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Portas | SATA, PCI Express X16 | Aplicativo | Área de trabalho/casa/estação de trabalho |
|---|---|---|---|
| Fabricante de chipset | Intel | Tipo de soquete | LGA1200 |
| Fator de forma | Micro-ATX | Tipo de memória | Ddr4 |
| Capacidade máxima de RAM | 64 GB | tipo de placa gráfica | Suporte de CPU de necessidade integrada |
Descrição de produto
PCWINMAX B560 MATX Gaming Motherboard LGA1200 Socket B560 Chipset Supports 11th and 10th Gen Intel Processors
Description:
The B560 LGA1200 motherboard is engineered for Intel 10th and 11th Gen Core processors, delivering powerful performance and excellent system stability. Supporting dual-channel DDR4 memory and high-speed PCIe 4.0, it’s perfect for gaming, design, and productivity workloads. With modern connectivity options including M.2 NVMe, HD, and USB 3.2, this motherboard provides the ideal foundation for a high-performance desktop PC.
Features:
1. Supports Intel 10th & 11th Gen LGA1200 processors
2. Dual-channel DDR4 memory support up to 3200MHz
3. PCIe 4.0 x16 slot for next-gen GPUs
4. M.2 NVMe SSD slot for ultra-fast storage
5. HD, VGA, and DP video output options
6. USB 3.2 Gen1 ports for high-speed connectivity
7. Gigabit LAN and HD Audio support
8. Durable power design ensures stable performance under heavy load
Parameter:
| CPU |
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors,
Pentium® Gold and Celeron® Processors
|
| Chipset | B560 Chipset |
| Memory |
2 x DDR4 memory slots, support up to 64GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
|
| Graphics |
1 x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1 x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
* Available only on processors featuring integrated graphics.
** Graphics specifications may vary depending on the CPU installed.
|
| Audio |
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
|
| LAN |
1 x Reatek 8111H 1000M/bps LAN controller
|
| Expansion Slots |
1 x PCIe x16 slot (From CPU)
- Support up to PCIe 4.0 for 11th Gen Intel® CPU
- Support up to PCIe 3.0 for 10th Gen Intel® CPU
1 x PCIe 3.0 x1 slot (From PCH)
1 x M.2 slot (NVme PCIE GEN3X4)
|
| I/O Connectors |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
3 x SATA 6Gb/s connectors
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 3-pin system fan connector
1 x Front panel audio connector
2 x System panel connectors
1 x Serial port connector
1 x Clear CMOS jumper
|
| Accessories | 1x motherboard;1x SATA Cable;1x Mainboard Driver;1x baffle;1x User Manual |
